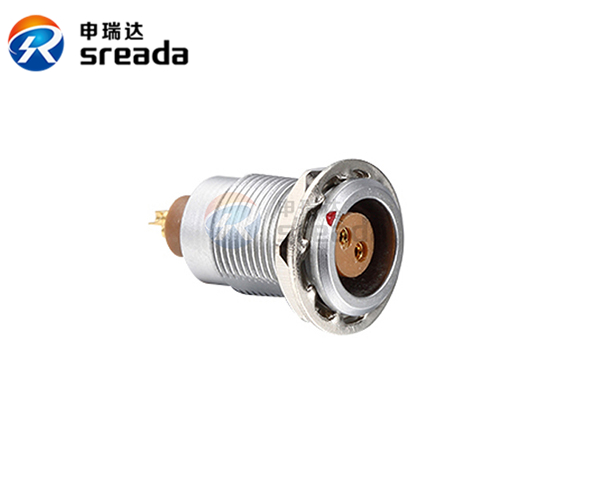

Model：SRD-B-ZGG

Type：2-32芯

Secure push-pull self-locking system

Locating pin, Cable clamp

1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Housing Material：Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces

A     B     E    M    Nmax    S1    S3    e

mm     12    12.5   2.4   2.5    18.3   8.2    11  M9x0.6

in     0.47   0.49  0.09   0.10   0.72   0.32   0.43

Technical Feature

Mating Cycles：>5000

Humidity (max):<=95% [at 60 deg C / 140 F]

Temperature Range：-45°— +125°

Vibration：10 — 20000Hz，15g
Mechanical shock：100g.6ms
Salt spray corrosion test：>48h
360° shielding provides full EMC protection
Level of protection：IP50
