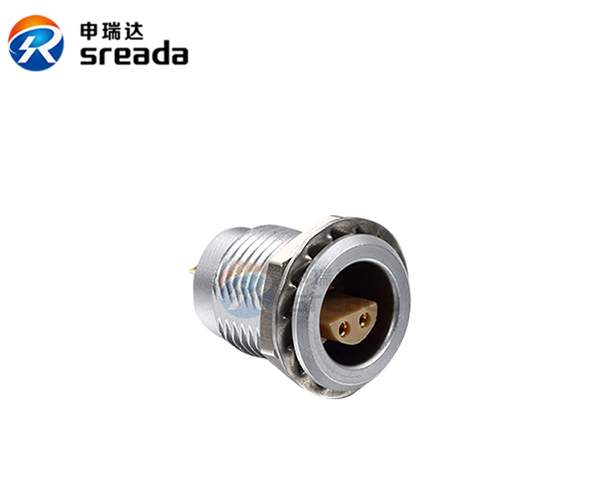

Model：SRD-S-ZRA

Shell type：Fixed socket, nut fixed

Keying position：hermaphrodite keying (" half moon "insert)

Housing Material：Brass (chrome plated) shell and  tail cover，Brass nickel plated locking sleeve

Technical Feature

Mating Cycles：>5000

Humidity (max):<=95% [at 60 deg C / 140 F]

Temperature Range：-45°— +125°

Vibration：10 — 20000Hz，15g
Mechanical shock：100g.6ms
Salt spray corrosion test：>48h
360° shielding provides full EMC protection
Level of protection：IP50
