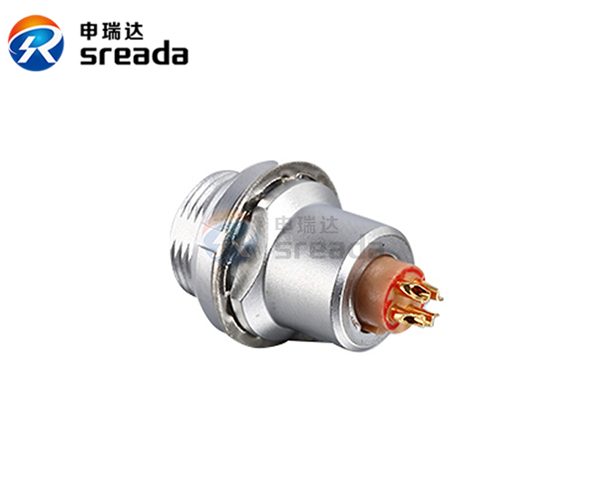

Model：SRD-B-DHG

Type：2-14PIN

Secure push-pull self-locking system

Floating socket, Locating pin, Cable clamp

1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Housing Material：Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces

Technical Feature

• Mating Cycles：>5000

Humidity (max):<=95% [at 60 deg C / 140 F]

Temperature Range：-45°— +125°

Vibration：10 — 20000Hz，15g
Mechanical shock：100g.6ms
Salt spray corrosion test：>48h
360° shielding provides full EMC protection
Level of protection：IP50
