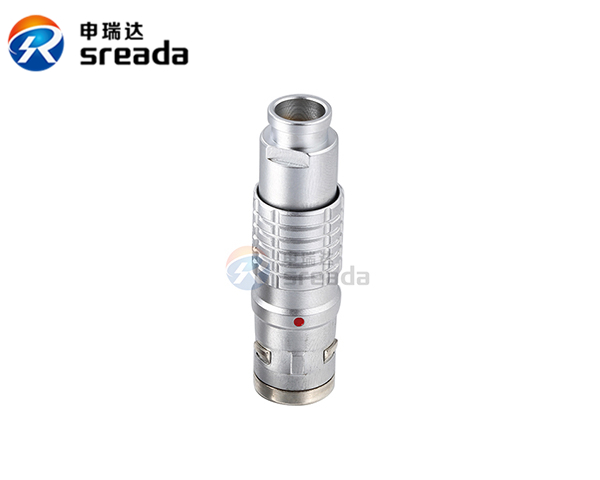

SRD-K-TGG
  • 6.jpg
  • Producs details
  • Specification

ModelSRD-K-TGG

Multicore2—32 PIN


Straight plug, locating pin locating, cable clip.

1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Housing Material:Brass (chrome plated) shell and  tail cover,Brass nickel plated locking sleeve

Cable fixedC45:4.1-4.5mm C50:4.6-5.0mm C55:5.1-5.5 C60:5.6-6.0 K70:6.6-7.0


  • Secure push-pull self-locking system

  • Rugged housing is designed for extreme working conditions

  • Waterproof connection

  • Welding, bonding and PCB pin core

  • A variety of pin choices can avoid mixing between similar connectors

  • High density installation saves space


Technical Feature

Mating Cycles:>5000

Humidity (max):<=95% [at 60 deg C / 140 F]

Temperature Range-45°— +125°

Vibration10 — 20000Hz,15g
Mechanical shock100g.6ms
Salt spray corrosion test:>48h
360° shielding provides full EMC protection
Level of protectionIP68
