Feature

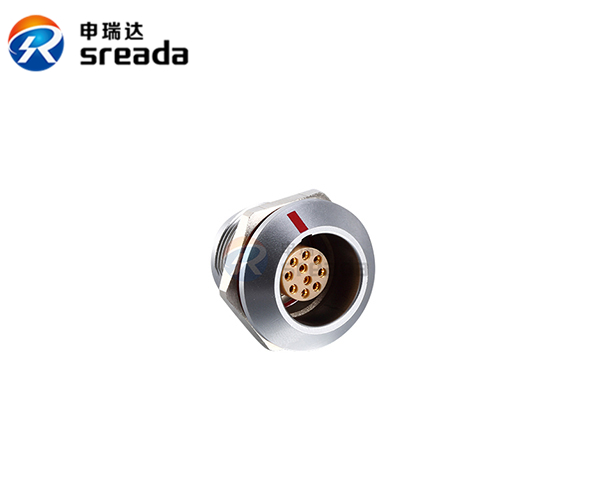

• Fixed socket, nut fixed

• Secure push-pull self-locking system

• Rugged housing is designed for extreme working conditions

• 360° shielding provides all-round EMC protection (anti-electromagnetic interference)

• Positioning pin system ( is standard positioning pin) is used for connector alignmen

• Multi-core types 2-32 cores

• Waterproof connection (IP68/IP66)

• Welding, compression and PCB needle insert (straight or curved)

• A variety of pin choices can avoid mixing between similar connectors

• High density installation saves space

Technical Feature

Mating Cycles：>5000

Humidity (max):<=95% [at 60 deg C / 140 F]

Temperature Range：-45°— +125°

Vibration：10 — 20000Hz，15g
Mechanical shock：100g.6ms
Salt spray corrosion test：>48h
Level of protection：IP65-68
