一.XF Series Connector Feature

• Secure flap push-pull self-locking system

• Multi-core types 2-32 pins

• Solder and printed circuit board pins

• High density installation saves space

• Internal semicircle positioning to prevent misplacement

• 360° shielding provides full EMC protection（anti-electromagnetic interference）

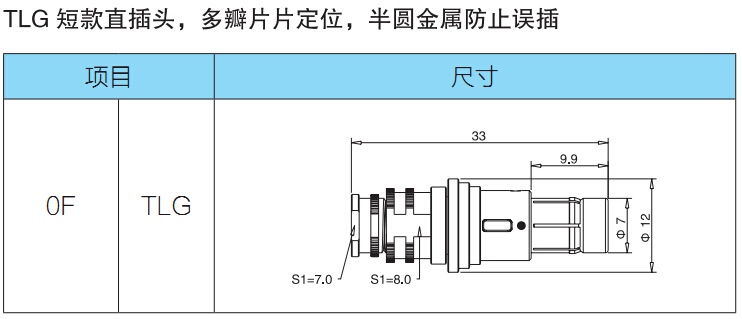

• Multi - flap positioning, semicircle metal to prevent misplacement

• The locating pin system (standard locating pin) is used for connector alignment

二.XF Series Main Technical Parameters

• Environment temperature：-50℃～+125℃

• Operation current： 1.5~~35A（Mainly related to the cross-sectional area of contact parts）

• Operation voltage：DC/200~~2.7KV，AC/150~~3KV（Mainly related to the distance between contact parts）

• Testing voltage：DC/600~~5KV，AC/1.5~~4.5KV（Mainly related to the distance between contact parts）

• Contact resistance：2.5~~10mΩ

• Insulation resistance：≥5000M

• Mechanical life：≥5000次（Connection and separation）

三.Welding Precautions：

• The cable outer diameter should match the cable clamp size

• The wire core specification should match the needle core end diameter

• The temperature of the electric soldering iron should be controlled at about 380 degrees without lead

• After welding, each core shall be insulated by heat-shrinkable tube

• The pins and insulators should be protected when welding
