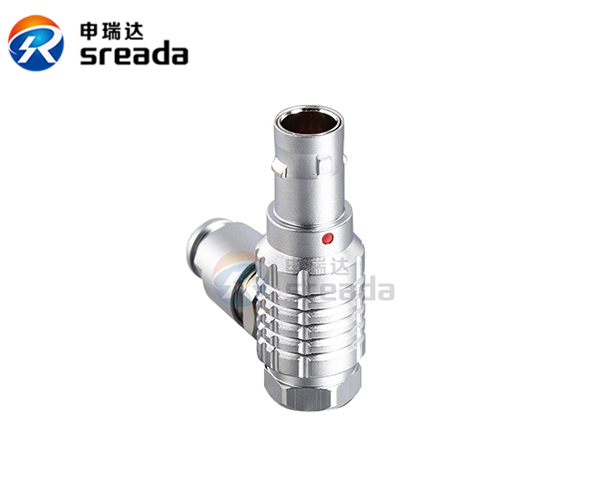

SRD-B-THG 90°
  • THG 90°-.JPG
  • THG 90°.JPG
  • Producs details
  • Specification

ModelSRD-B-THG

Multicore:2—14 PIN


Shell type90°plug, cable clip

1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Housing Material:Brass (chrome plated) shell and  tail coverBrass nickel plated locking sleeve and positioning parts

Cable fixedD32:D422.1-3.0mm:3.1-4.0 D52:4.1-5.0mm


Technical Feature

Mating Cycles:>5000

Humidity (max):<=95% [at 60 deg C / 140 F]

Temperature Range-45°— +125°

Vibration10 — 20000Hz,15g
Mechanical shock100g.6ms
Salt spray corrosion test:>48h
360° shielding provides full EMC protection
Level of protectionIP50
