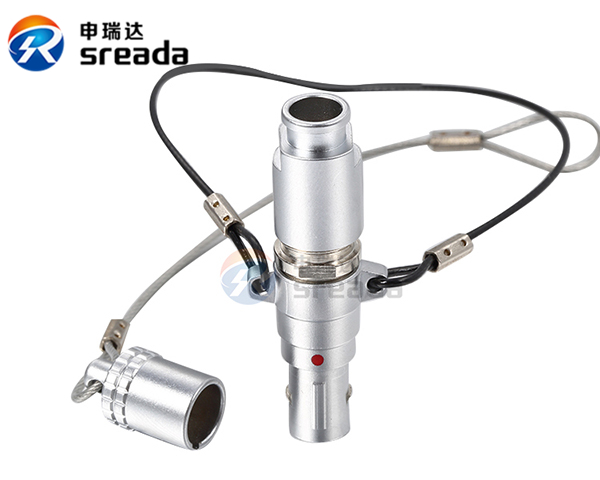

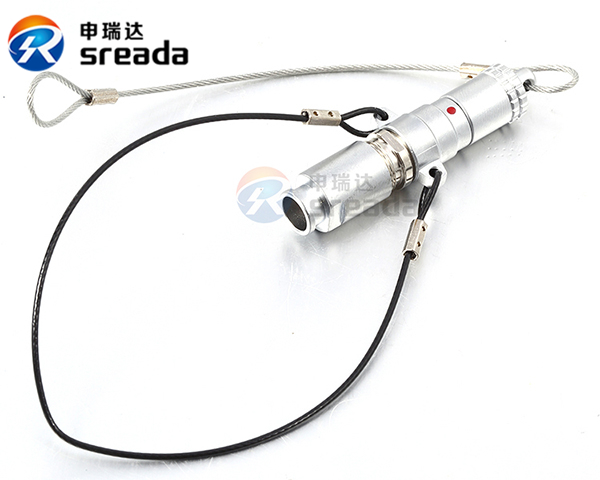

Model：SRD-B-TNG

Multicore：2—9 PIN

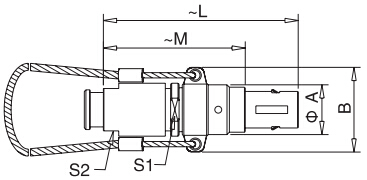

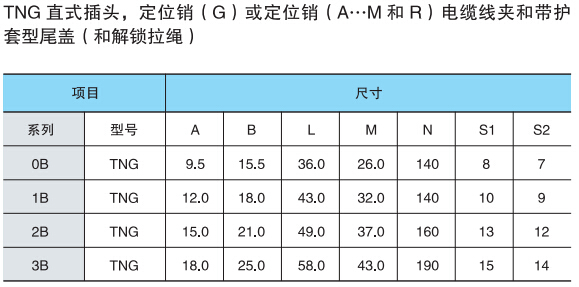

Locating pin (G) or locating pin (A... M and R) cable clip and sheathed stern cover (unlocking drawstring)

Shell type：Straight plug, cable clip

1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Housing Material：Brass (chrome plated) shell and  tail cover，Brass nickel plated locking sleeve and positioning parts

Technical Feature

Mating Cycles：>5000

Humidity (max):<=95% [at 60 deg C / 140 F]

Temperature Range：-45°— +125°

Vibration：10 — 20000Hz，15g
Mechanical shock：100g.6ms
Salt spray corrosion test：>48h
360° shielding provides full EMC protection
Level of protection：IP50
